Pre requisite evaluations |
|||

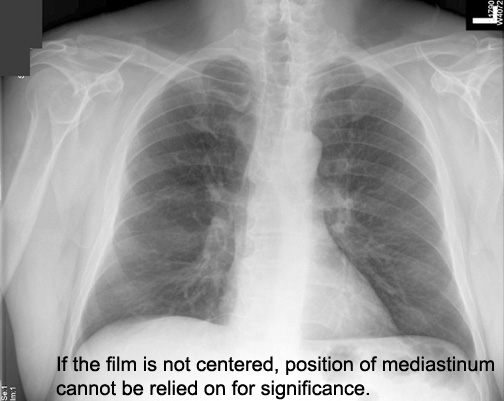

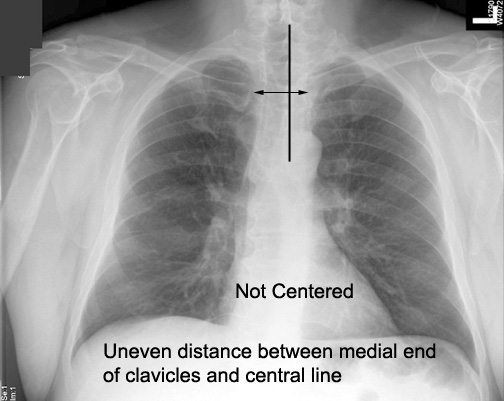

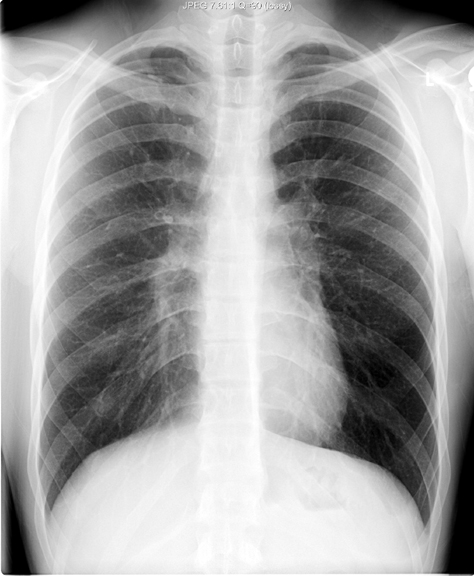

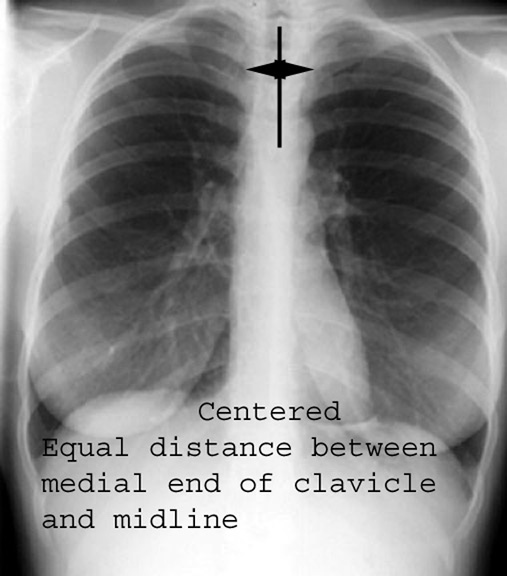

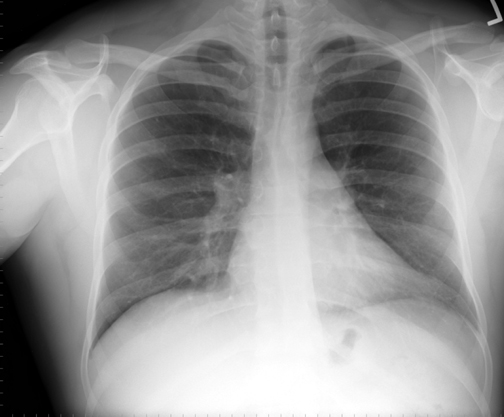

CXR | Is this film centered? | How do you determine it? Why is that important? | Answer |
CXR | Is this film centered | Answer | |
Why is it important to know that the film is centered? | Answer | ||

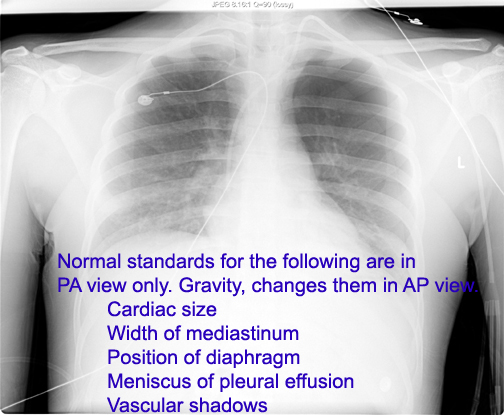

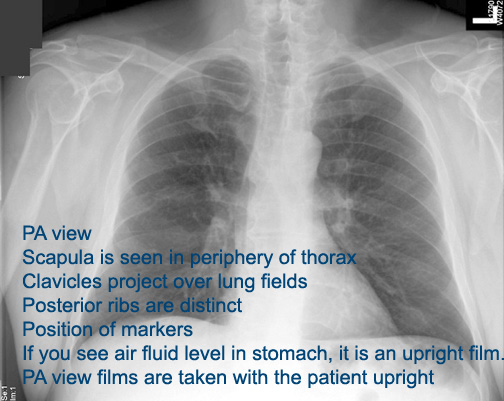

CXR | Is it PA or AP view? | How can you tell? | Answer |
CXR | Is it PA or AP view? | How can you tell? | Answer |
CXR | Is it PA or AP view? | Why is it important to know whether it is PA or AP view? | Answer |

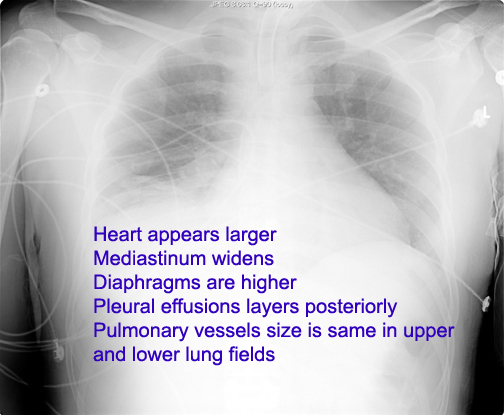

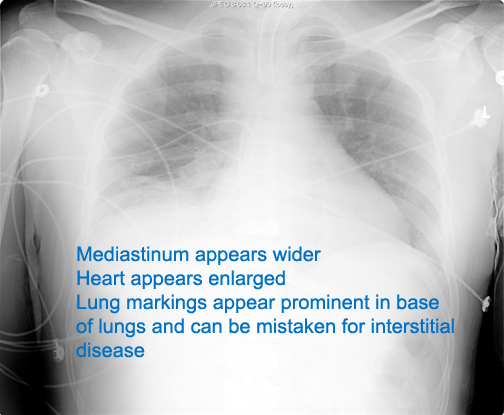

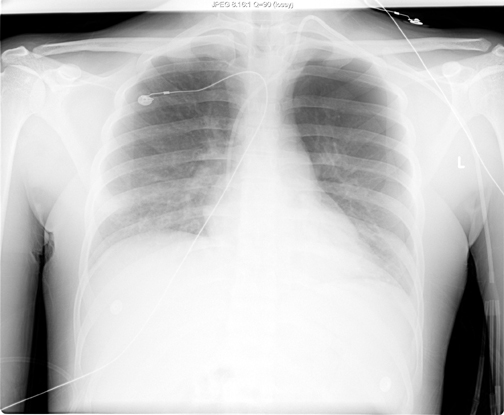

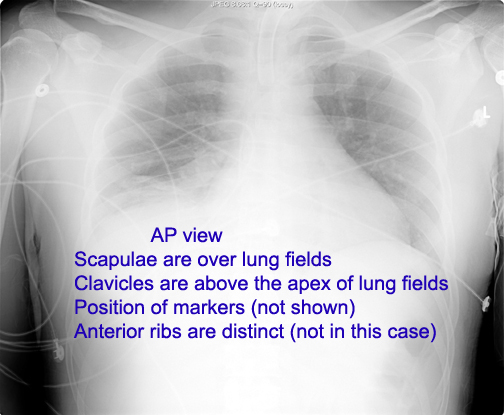

What are the consideration to be given in interpreting AP view? | Answer | ||

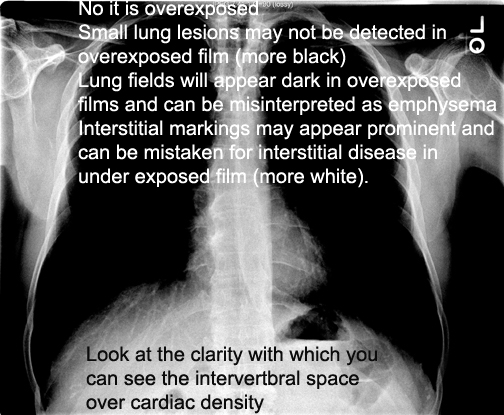

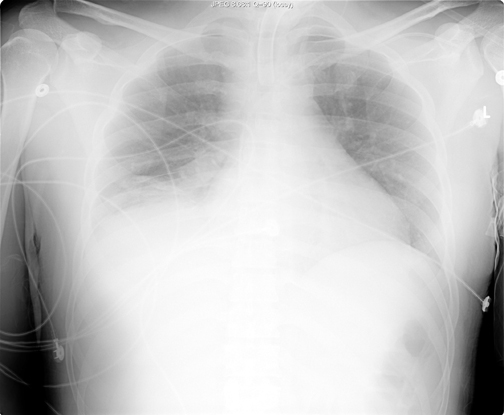

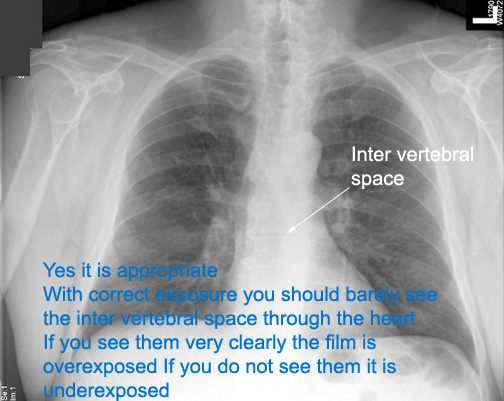

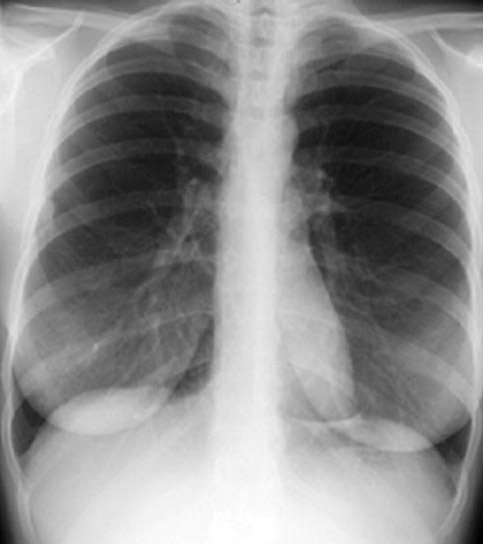

CXR | Is this film exposed properly? | How do you evaluate exposure? | Answer |
CXR | Is the exposure appropriate? | Whys is it important to assess exposure? | Answer |

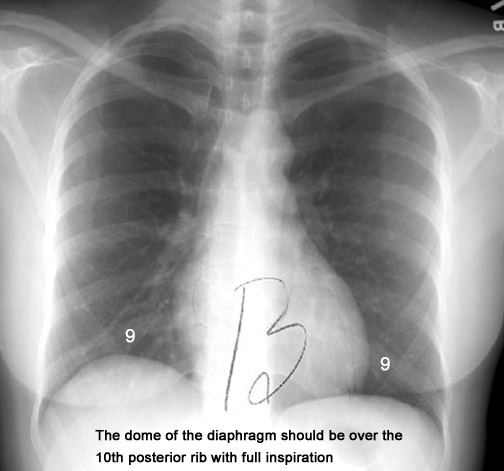

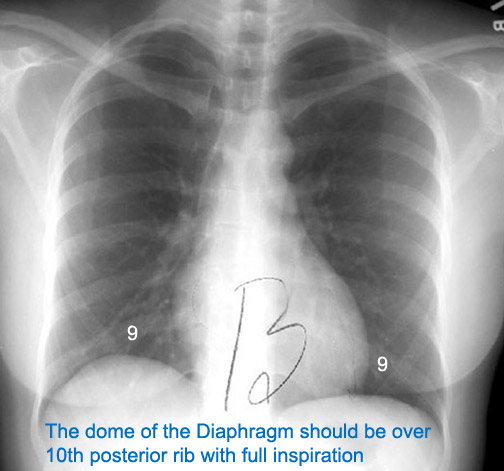

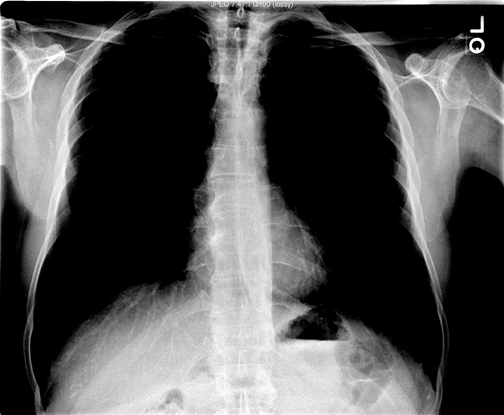

CXR | Has this patient taken full inspiration? | How do you decide that it is good inspiration film? | Answer |
What are the problems if the patient has not taken full inspiration? | Answer | ||
PA view |
|||

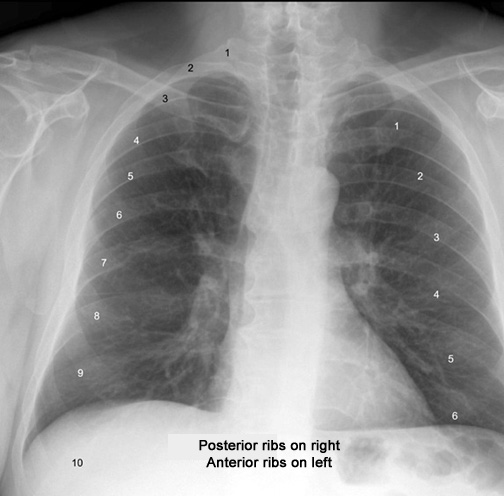

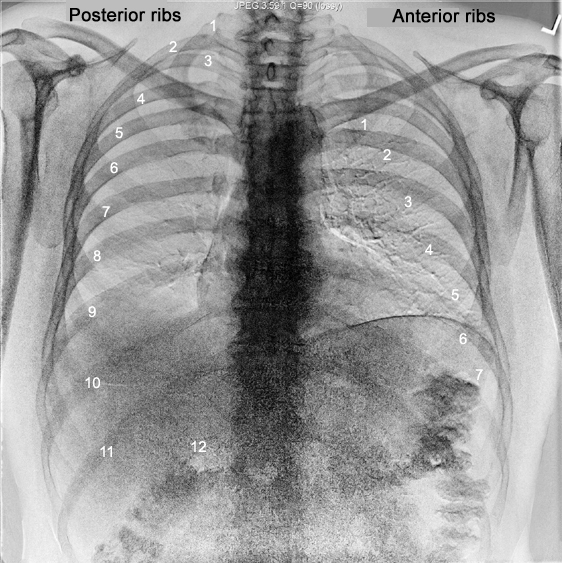

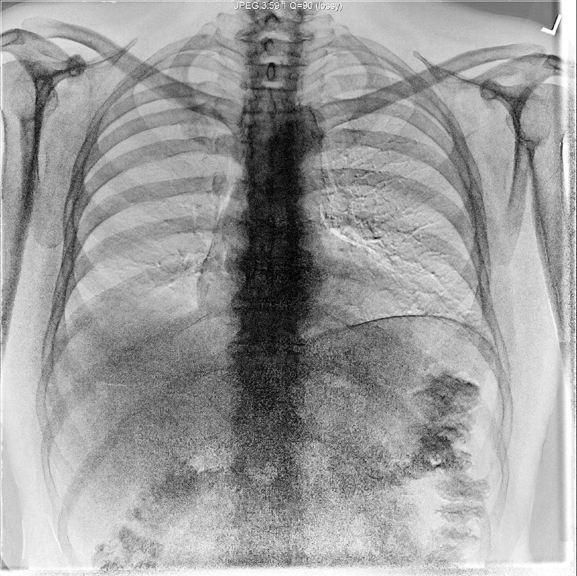

CXR | Identify the anterior and posterior ribs | Answer | |
CXR | How do you number the posterior ribs? | Answer | |

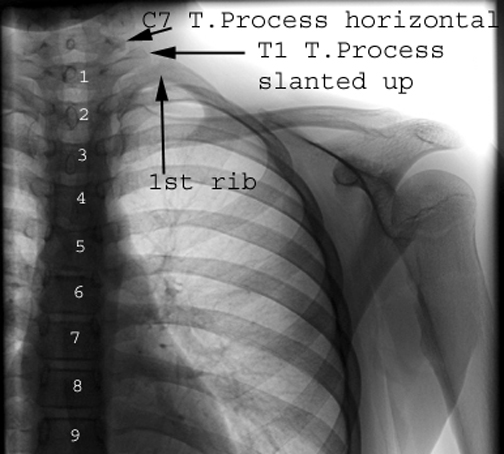

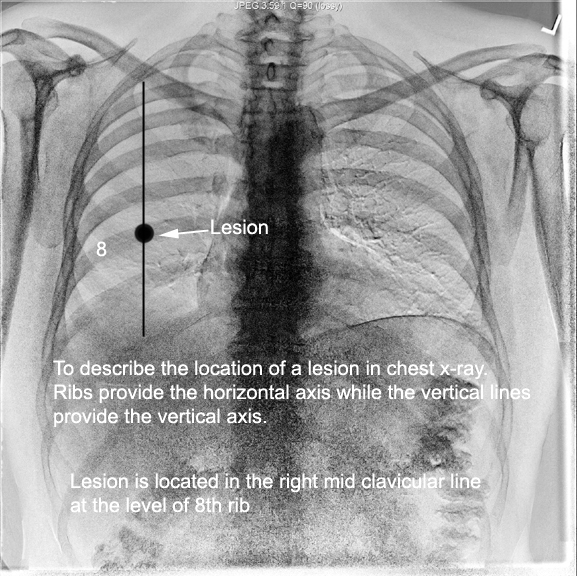

CXR | How do you identify the first thoracic vertebra? | Answer | |
CXR | Number the anterior ribs? | Answer Answer | |
What is the purpose of numbering ribs? | Answer | ||

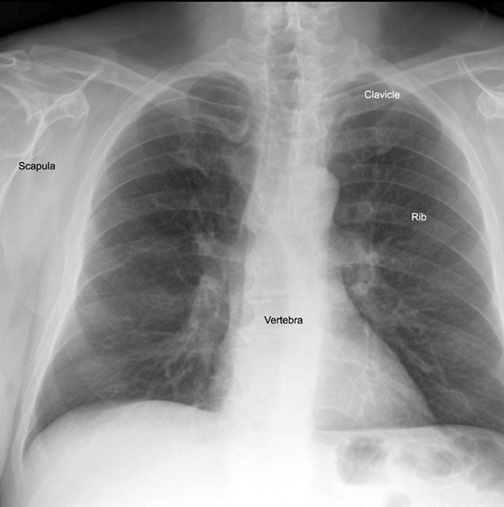

CXR | Identify Vertebra, scapula, ribs, clavicle | Answer | |
CXR | Draw the outline of Mediastinum. | Answer | |
CXR | What are the Ievels at which you measure mediastinal width? | Answer | |

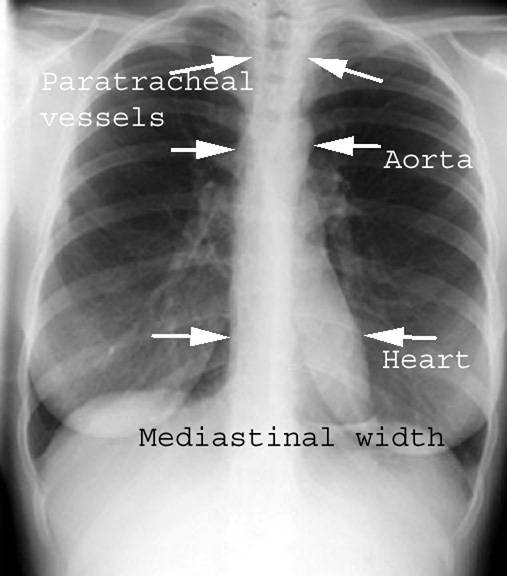

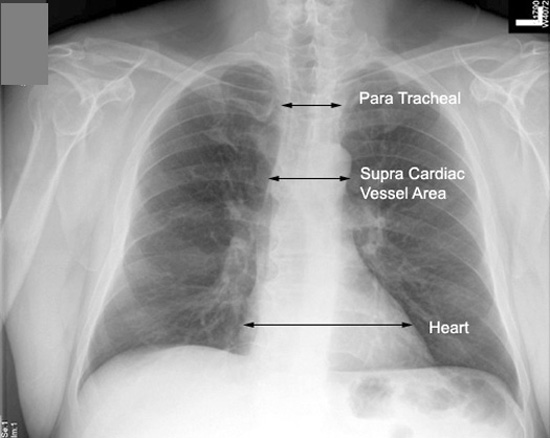

CXR | Outline mediastinum | What are the levels at which you measure mediastinal width? | Answer |
CXR | Outline mediastinum | What is the normal width of mediastinum at tracheal level? | Answer |
CXR | Outline mediastinum | What is the normal width of mediastinum at supra cardiac vessel area? | Answer |

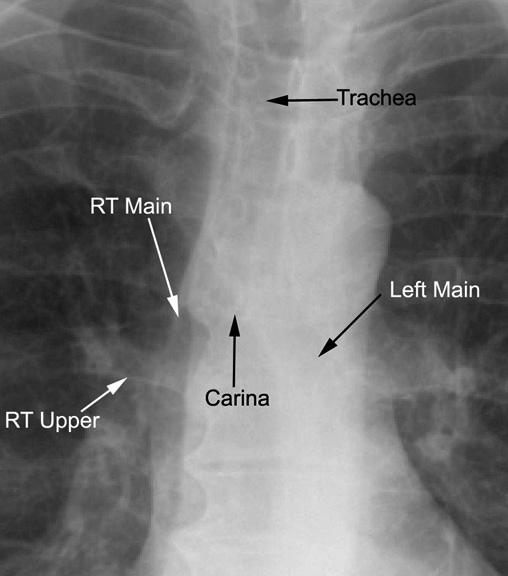

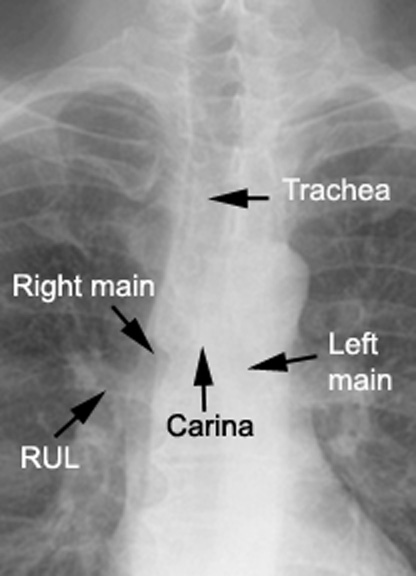

CXR | Identify Trachea, carina, right and left main stem bronchi. | Why are they visible, while rest of the bronchial tree is not? | Answer |
What is the carinal angle in this film? | What is the significance of widened carinal angle? | Answer | |

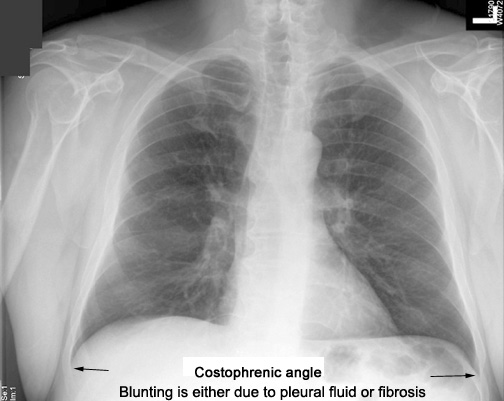

CXR 8 | Identify costo diaphragmatic (costo phrenic) angles | What does blunting of costo diaphragmatic angle imply? | Answer |

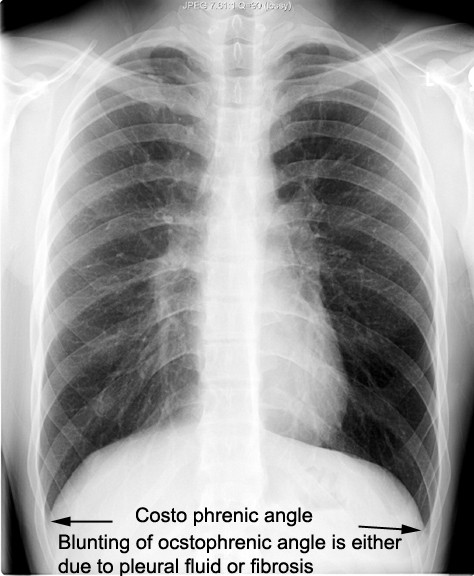

CXR | Identify costophrenic angles | What does blunting of costophrenic angle imply? | Answer |

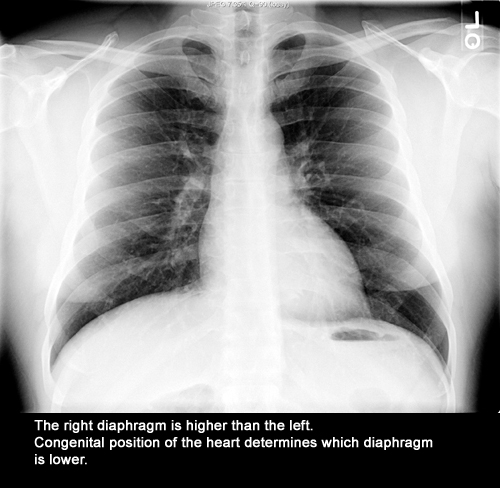

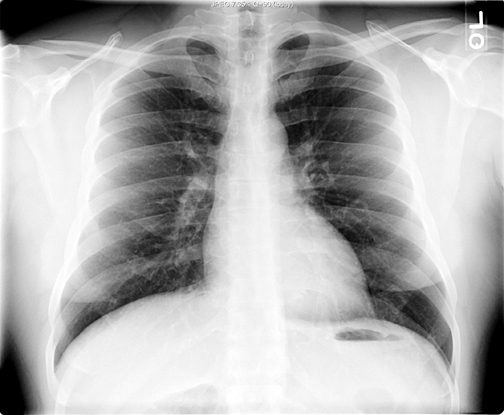

CXR | Identify diaphragm positions | Which diaphragm is higher and why? | Answer |
CXR | Identify Trachea, carina, right and left main stem bronchi. | Why are they visible, while rest of the bronchial tree is not? | Answer |
CXR | Identify right transverse fissure | What is the normal location? | Answer |
How does location of transverse fissure help you? | Answer | ||

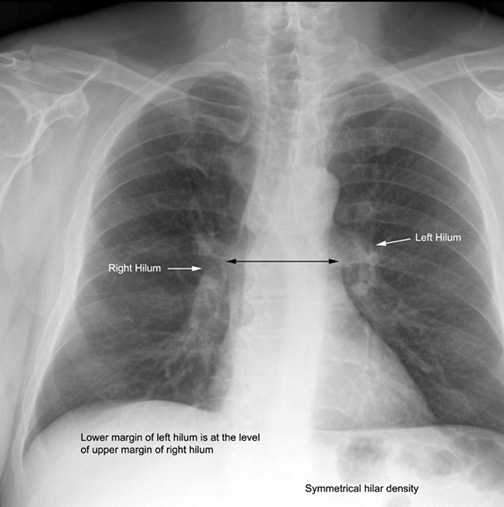

CXR | Identify left and right hilum. | What is the normal relationship? | Answer |
How is altered relationship between left and right hilum helpful in diagnostic interpretation? | Answer | ||
CXR | Compare and contrast vascular markings in upper vs. lower lung fields in PA view. | Why is there a difference? | Answer |
List conditions, where vascular markings are prominent in upper lung fields | Answer | ||

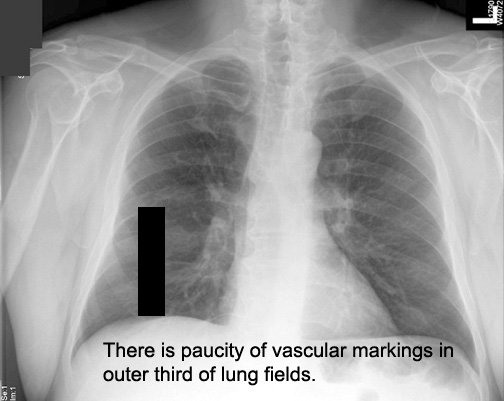

CXR | What is the difference in vascular markings between outer third and inner two thirds of lungs. | Answer | |
What is the significance of increased markings in outer third of lung fields? | Answer | ||

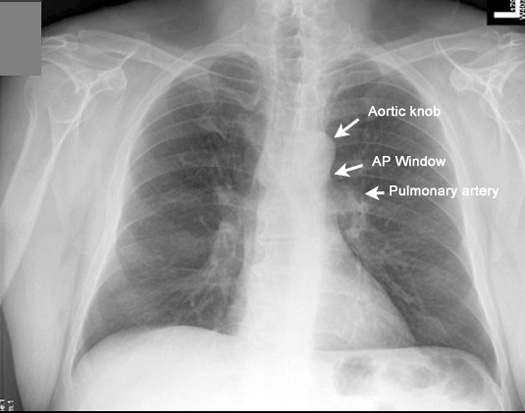

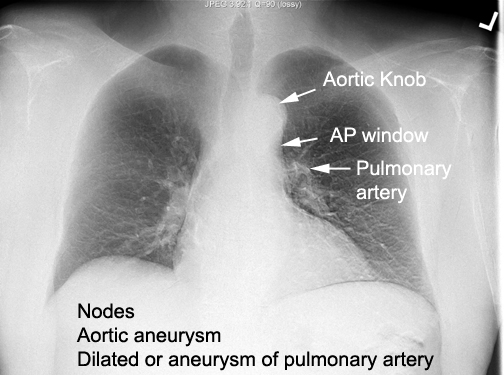

CXR | Identify Aortic knob, Aortopulmonary window (AP window) and the main Pulmonary artery | What is the significance of full AP window? | Answer |
CXR | Identify breast shadow | What is its significance of breast shadow in evaluating lower lung fields? | Answer |
What is the significance of one missing breast? | Answer | ||

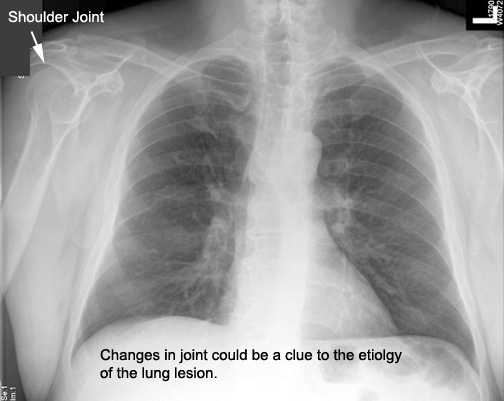

CXR | Identify shoulder joint | Why is it important to look at shoulder? | Answer |

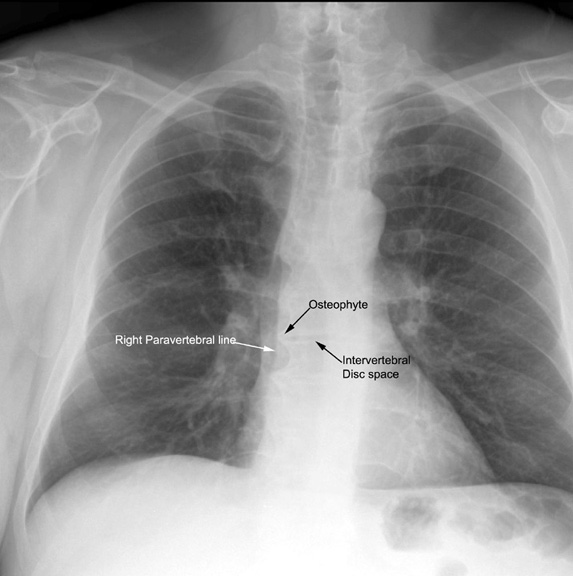

CXR | Identify right para vertebral line . | What are the conditions that can give prominent right para vertebral line? | Answer |

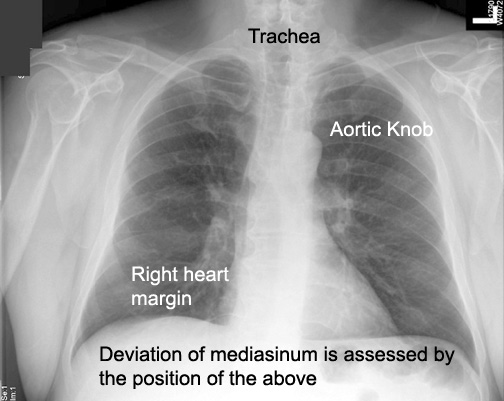

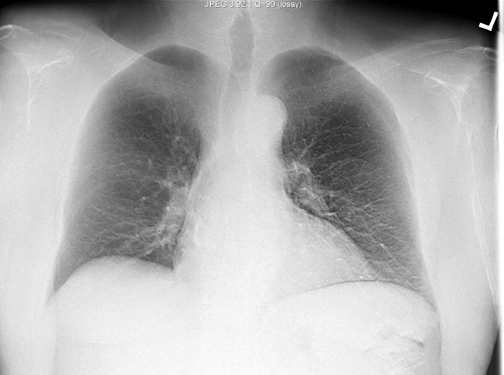

CXR | Hpw do you judge position of mediastinum? | Answer | |
Lobar Projections |
|||

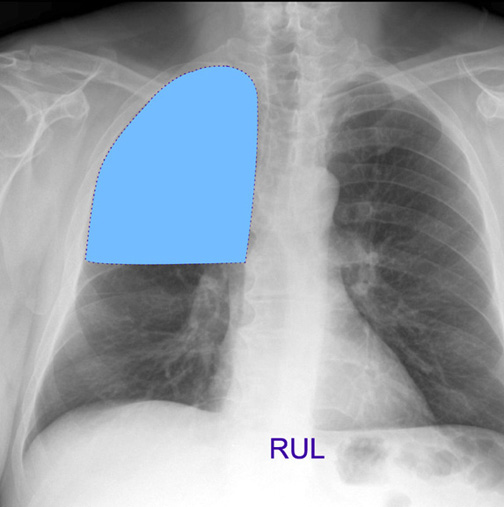

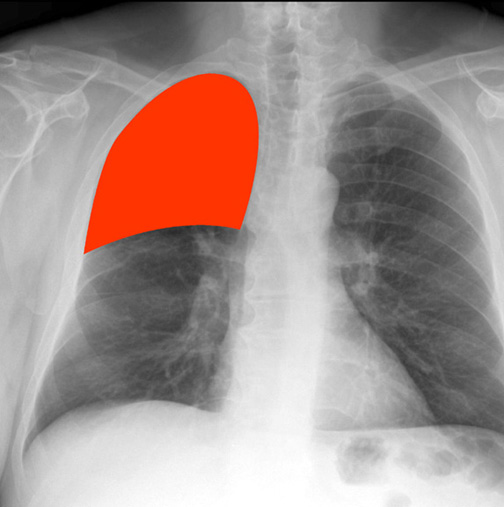

CXR | RUL projection in PA view | Answer | |
CXR | RUL projection in PA view | Answer | |

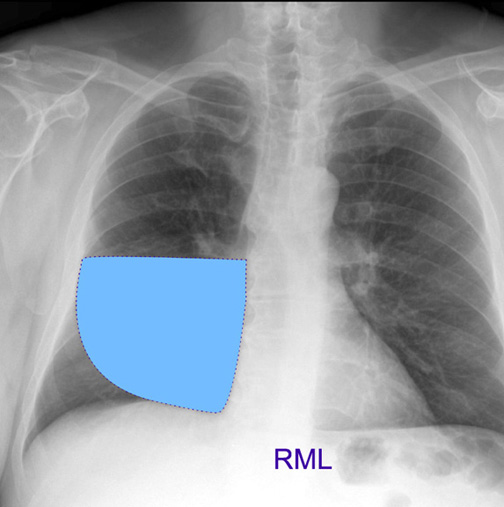

CXR | RML projection in PA view | Answer | |

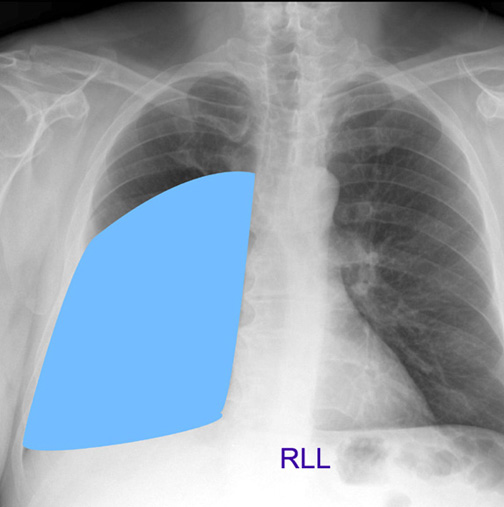

CXR | RLL projection in PA view | Answer | |

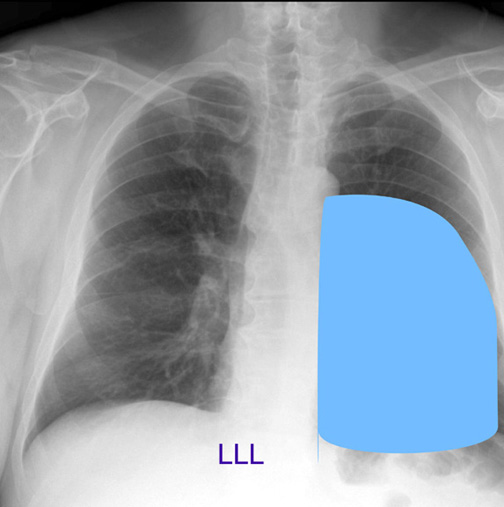

CXR | LLL projection in PA view | Answer | |

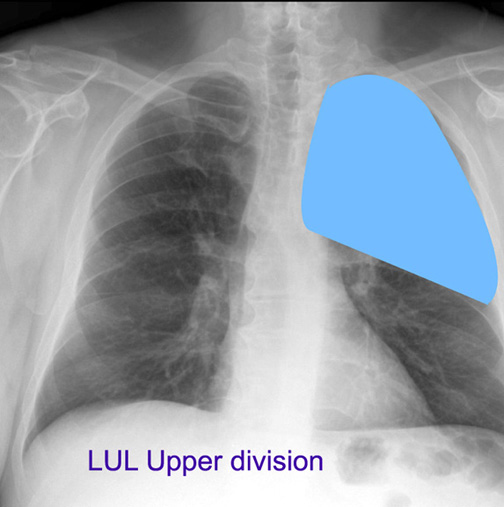

CXR | LUL projection in PA view | Answer | |

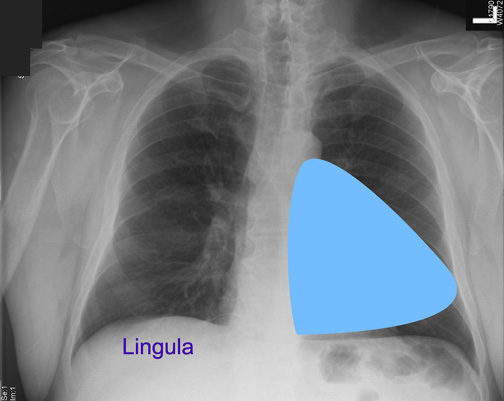

CXR | Lingula projection in PA view | Answer | |

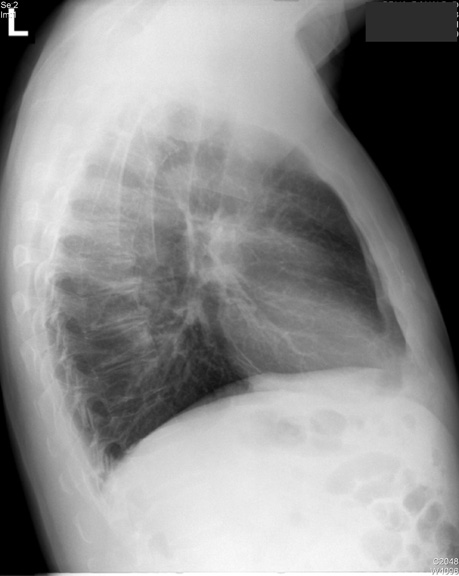

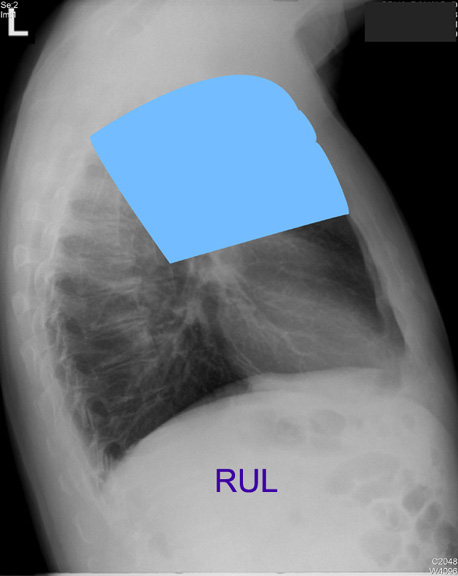

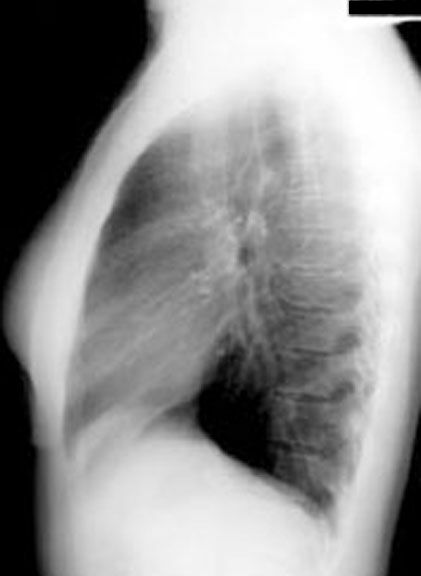

CXR | RUL projection in lateral view | Answer | |

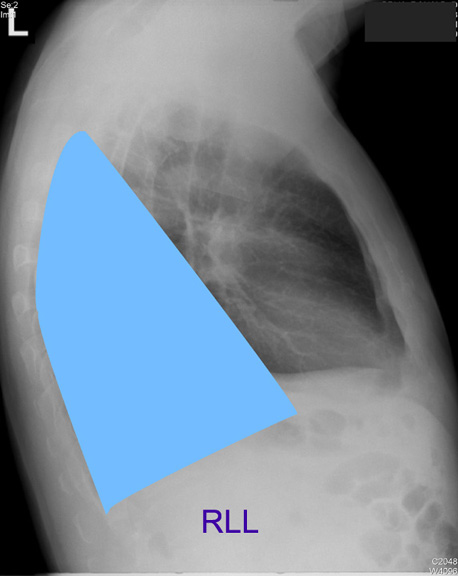

ICXR | RLL projection in lateral view | Answer | |

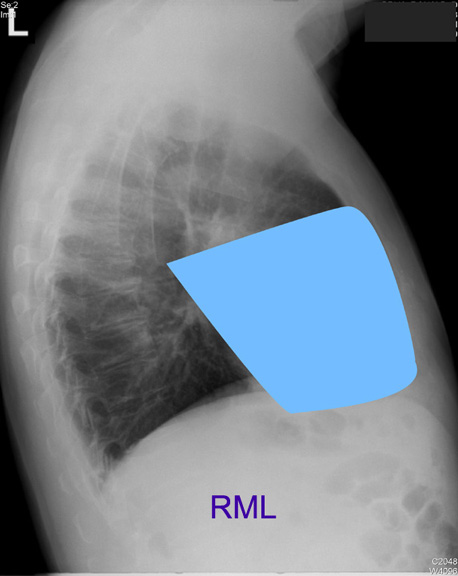

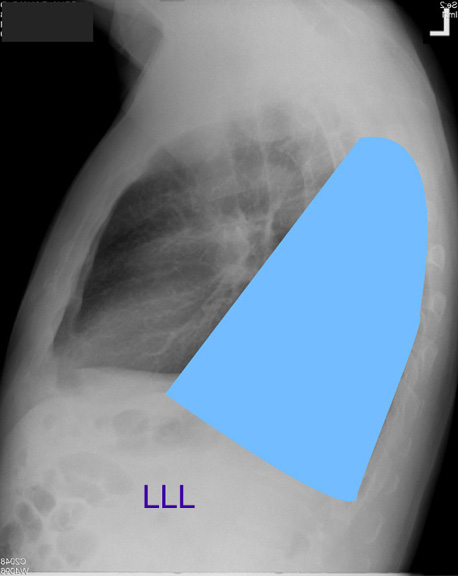

CXR | RML projection in lateral view | Answer | |
CXR | LLL projection in lateral view | Answer | |

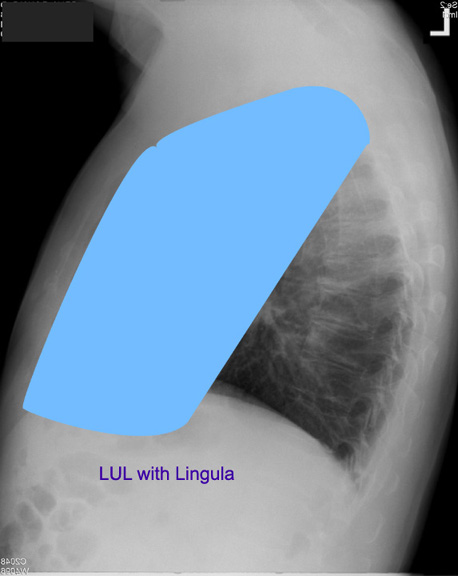

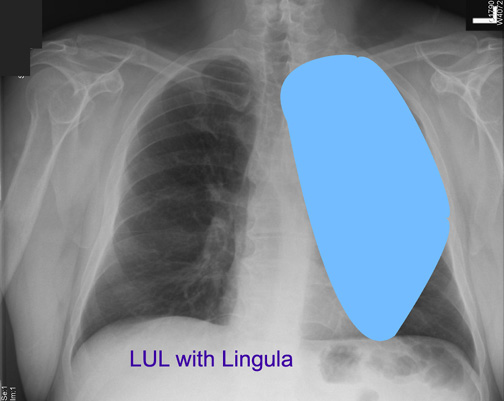

CXR | LUL with lingula projection in lateral view | Answer | |
CXR | LUL with lingula projection in PA view | Answer | |
Tracheo Bronchial Tree |
|||
Drawing | Identify the major divisions of the Tracheobronchial tree. | ||
Bronchogram | |||
Bronchogram | Locate the Carina | ||
Bronchogram | Identify the divisions of left main bronchus | ||
CT | Identify the bronchus | ||
CT | Identify the labeled bronchi | ||
CT | Identify the bronchus | ||
CT | Identify the labeled bronchi | ||
CT | Identify the labeled bronchi | ||
CT | Identify the labeled bronchi | ||
CT | Identify the labeled bronchi | ||
CT | Identify the labeled bronchi | ||
CT | Identify the labeled bronchi | ||
Heart |
|||

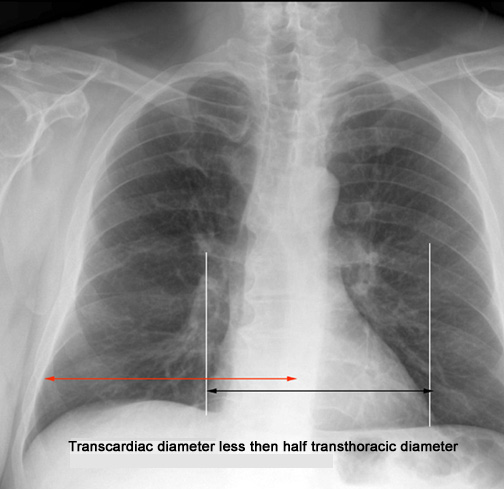

CXR | How do you measure heart size? | What is the normal range for heart size? | Answer |

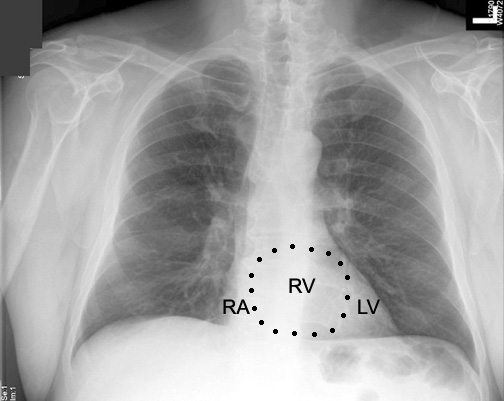

CXR | Identify chambers of heart in PA view | Answer | |

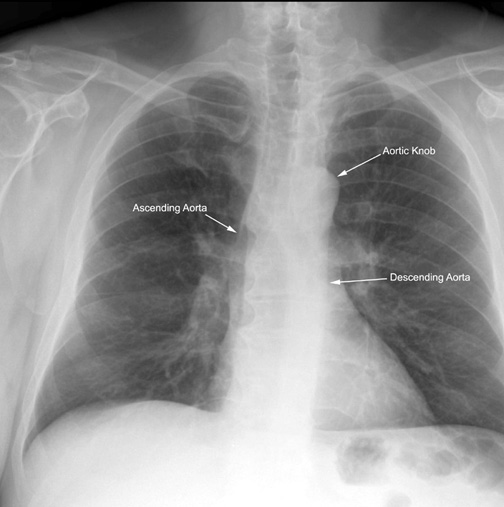

CXR | Identify ascending aorta, aortic knob and descending aorta | Answer | |
CXR | Identify structures along the edge of mediastinum | Answer | |
CXR | Identify Aortic knob, AP window and Pulmonary artery | What is the significance of full AP window? | Answer |
Lateral view |
|||

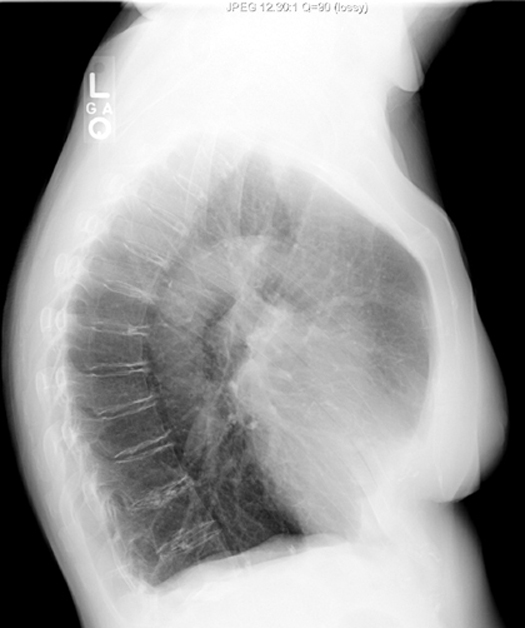

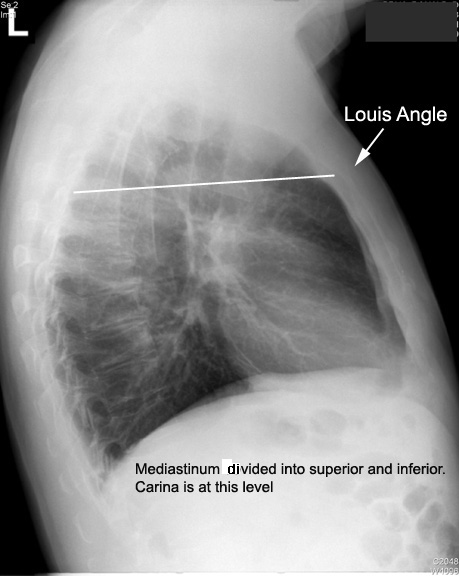

CXR | Identify Sternum and angle. of Louis. | What are the important landmarks at Sternal angle (Angle of Louis)? | Answer |

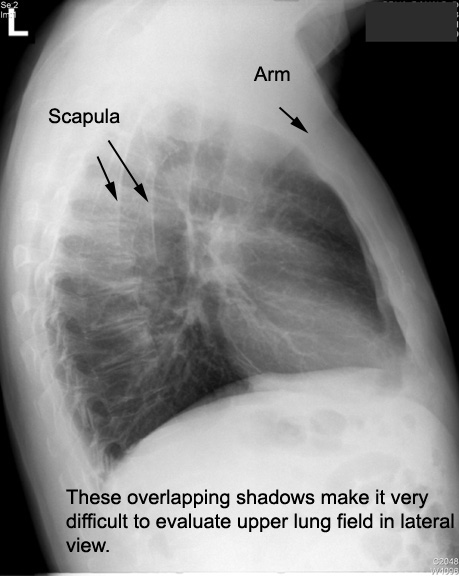

CXR | Identify axillary fold and Scapula | Answer | |

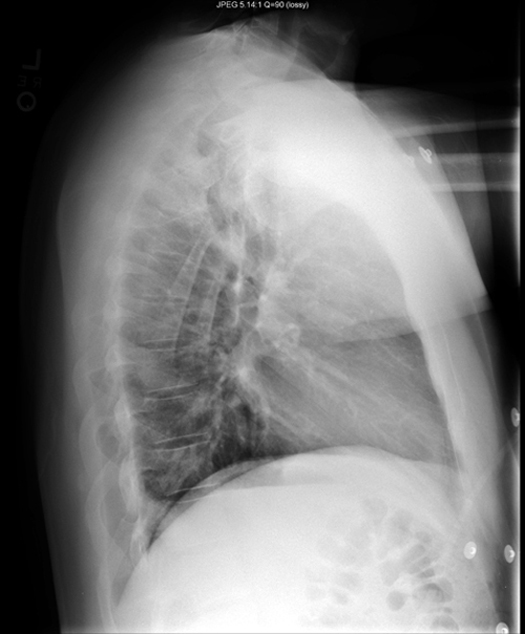

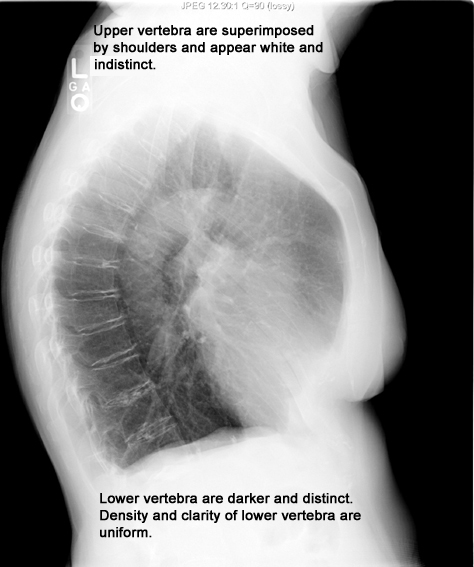

CXR | IIdentify Vertebra. | Is there a difference in radio density along the Spine. | Answer |

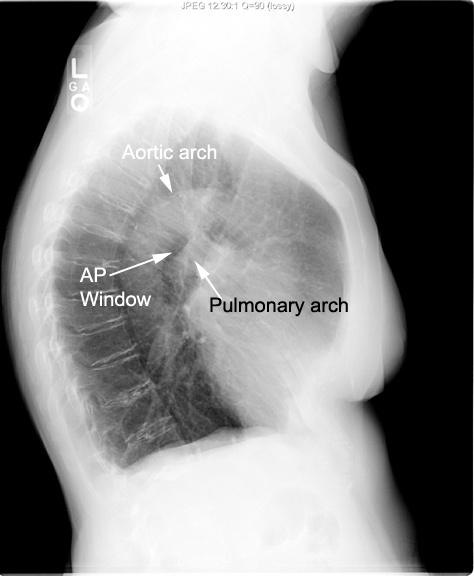

CXR | Identify aortic, pulmonary arches and AP window | Answer | |

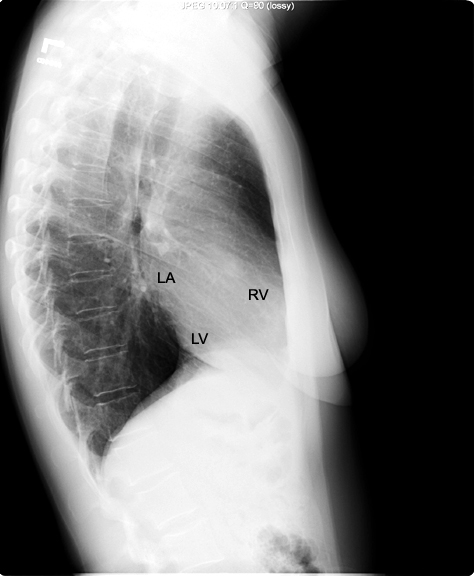

CXR | Identify chambers of heart in lateral view | Answer | |

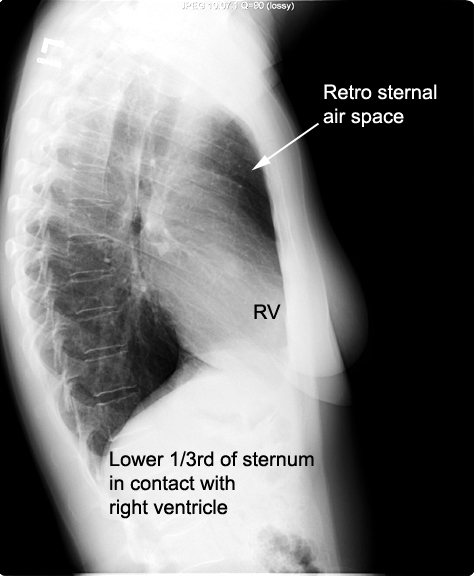

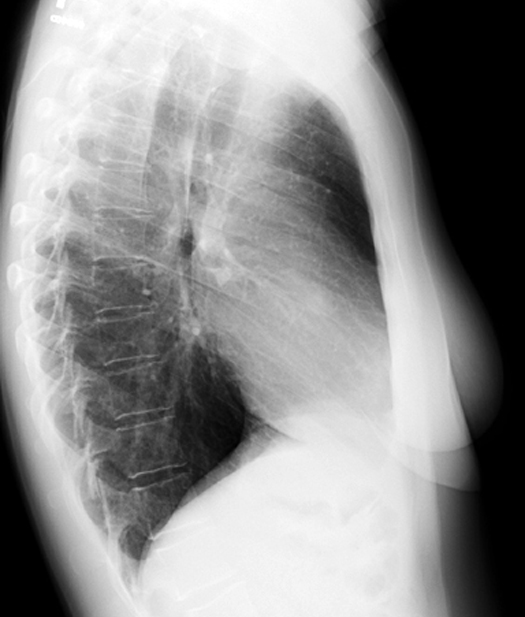

CXR | Identify retro sternal air space. | What is normal retro sternal space? | Answer |

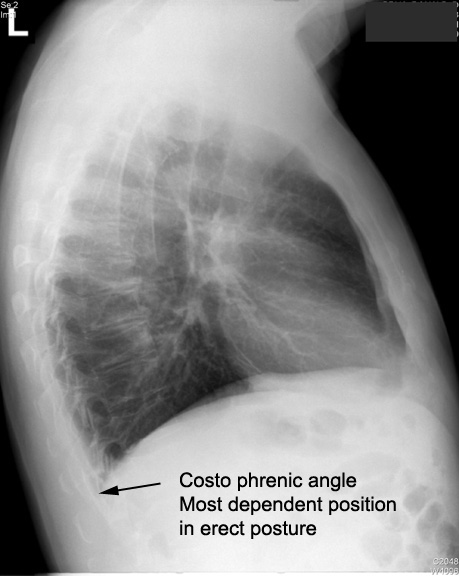

CXR | Identify costophrenic angle | How do we use this information? | Answer |

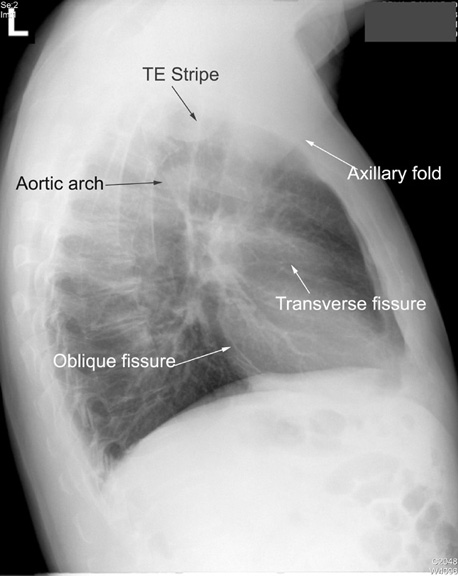

CXR | Identify oblique and transverse fissure | What is the normal position of these fissures? | Answer |

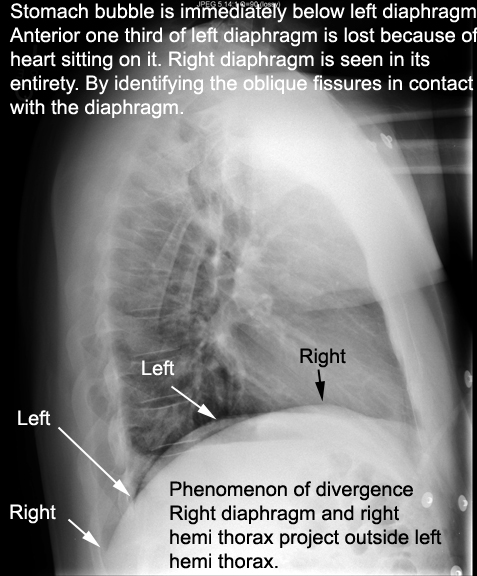

CXR | Identify diaphragms left and right | How did you arrive at your answer? | Answer |

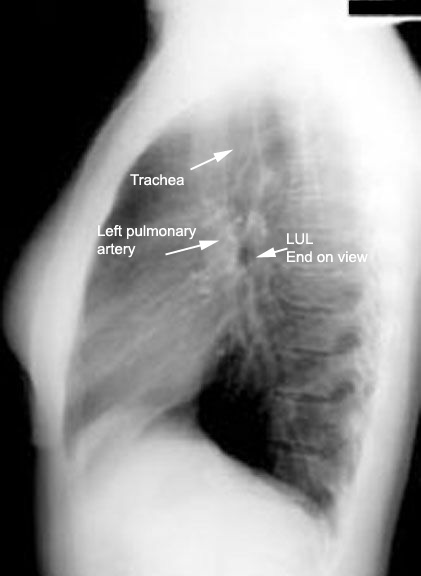

CXR | Identify trachea and LUL orifice. | Answer | |

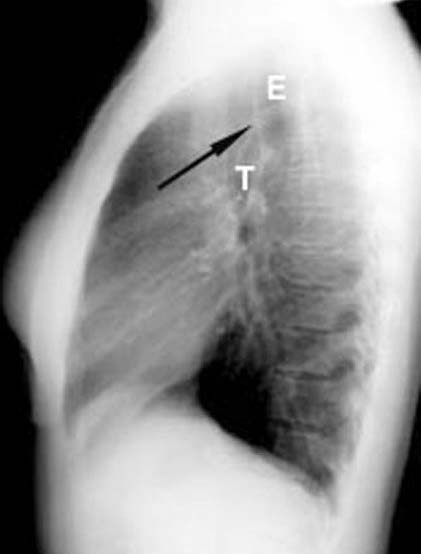

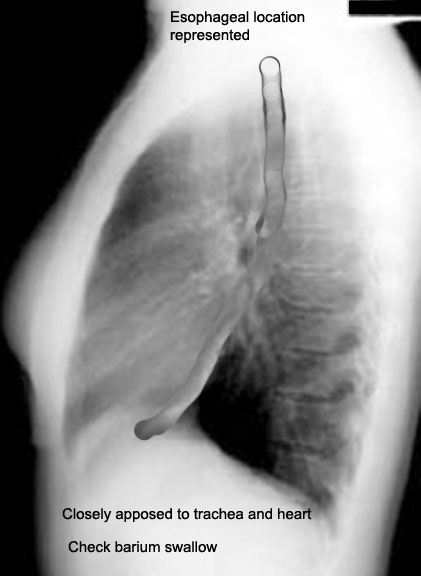

CXR | Identify the position of esophagus. | Answer | |
CXR | Identify Trcheo esophageal stripe | How do we use this information? | Answer |
CXR | Identify left and right pulmonary artery | Answer | |
CT |
|||

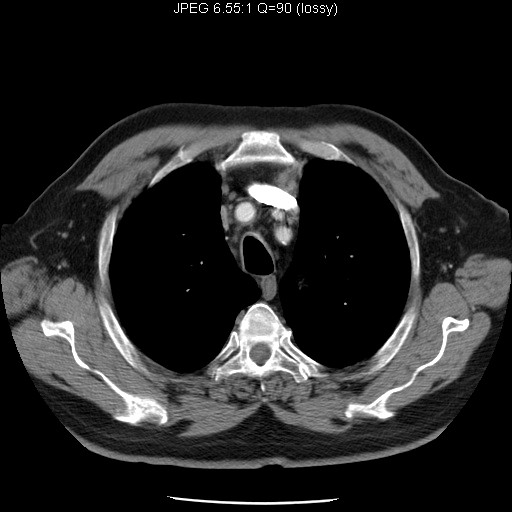

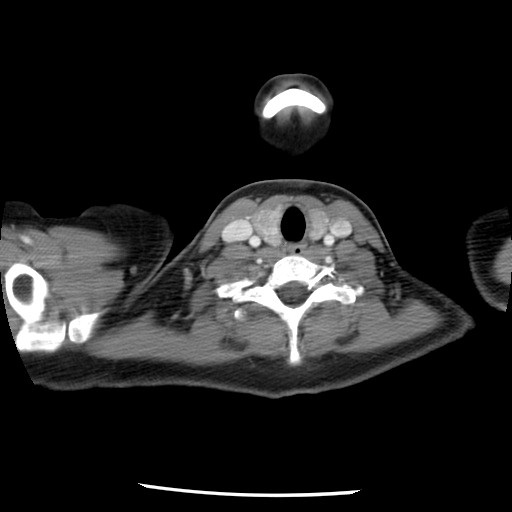

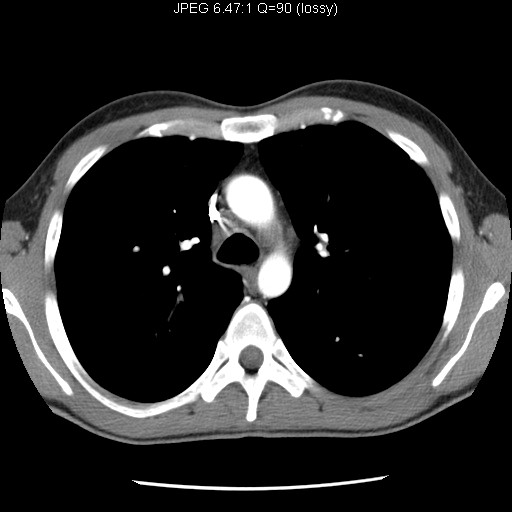

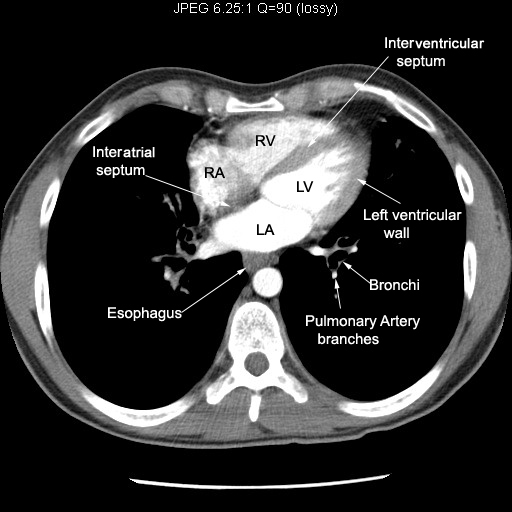

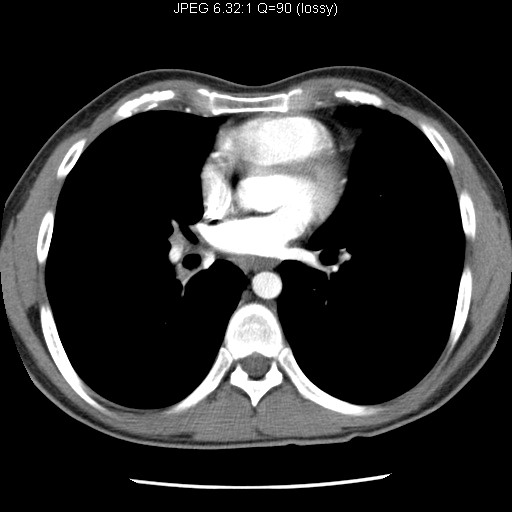

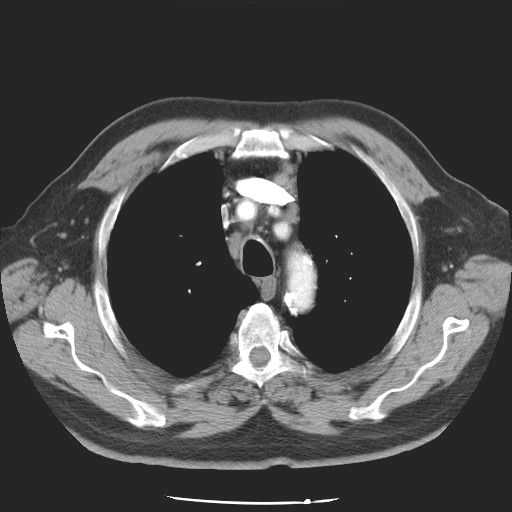

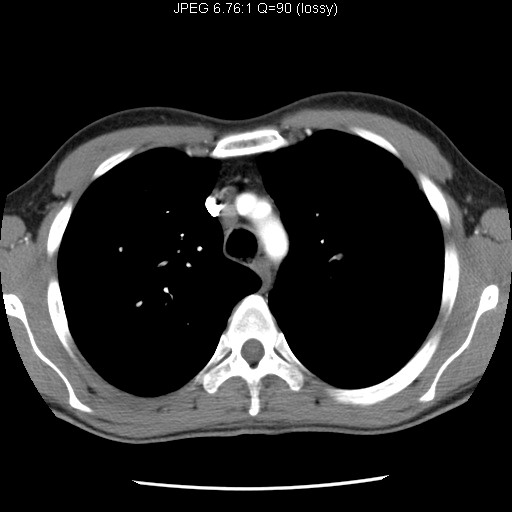

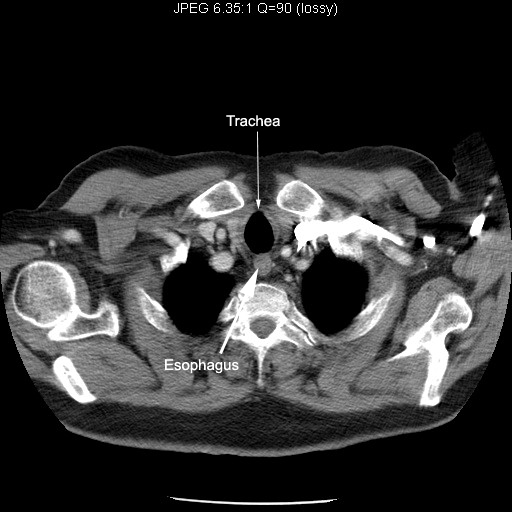

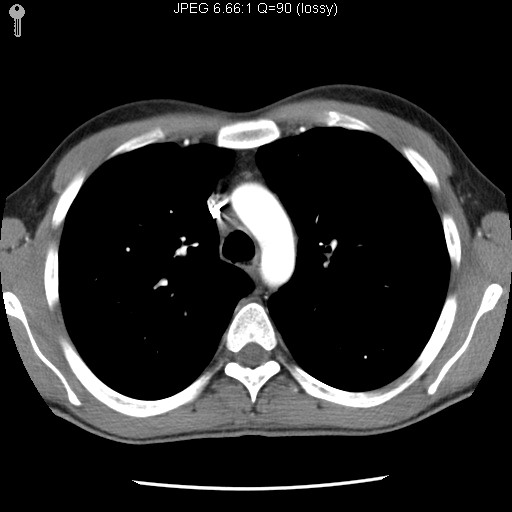

Image 1 | Identify Trachea and Esophagus | Answer | |

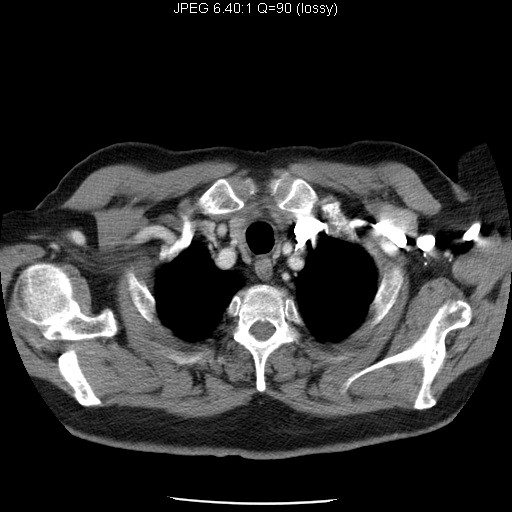

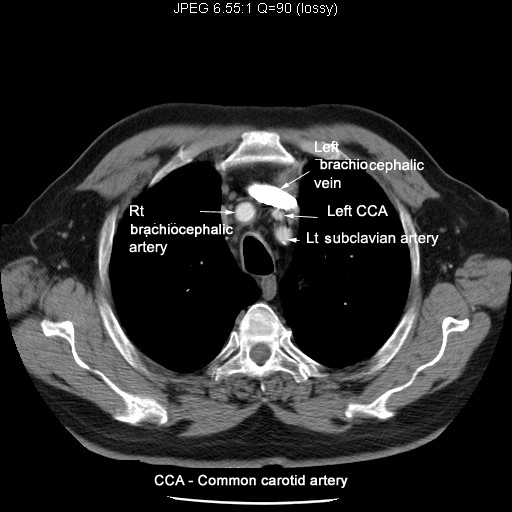

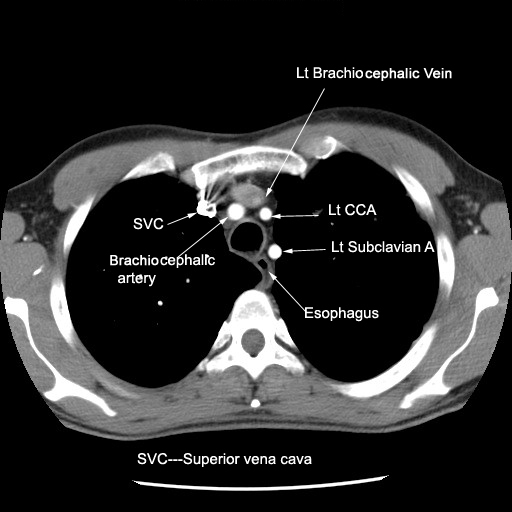

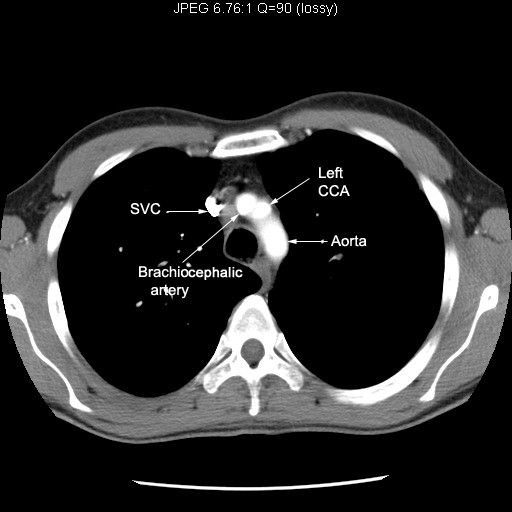

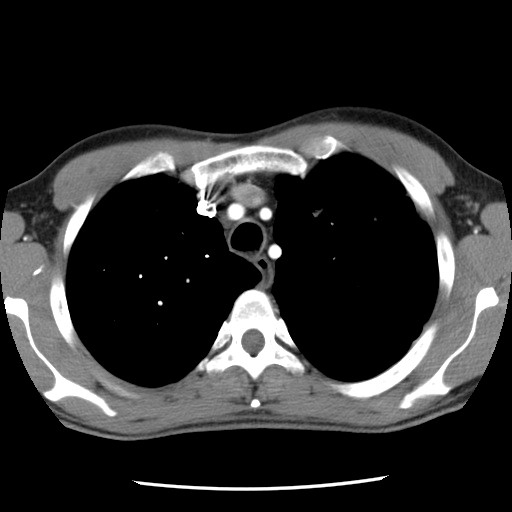

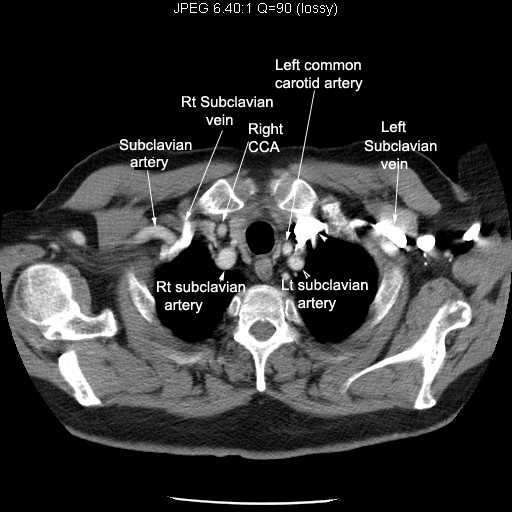

Image 2 | Identify vascular structures | Answer | |

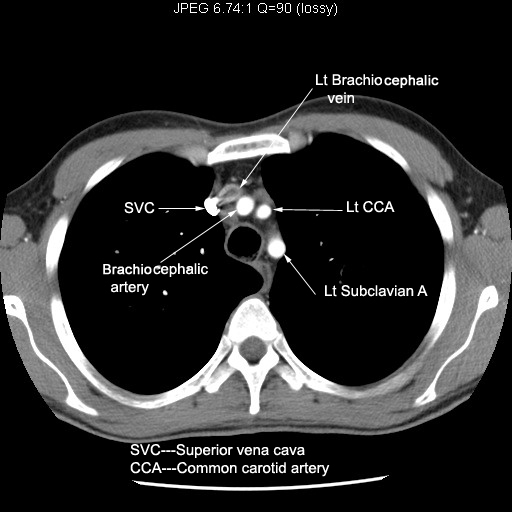

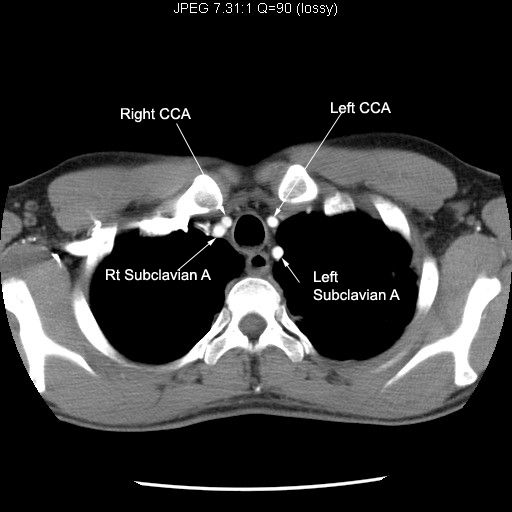

Image 3 | Identify vascular structures | Answer | |

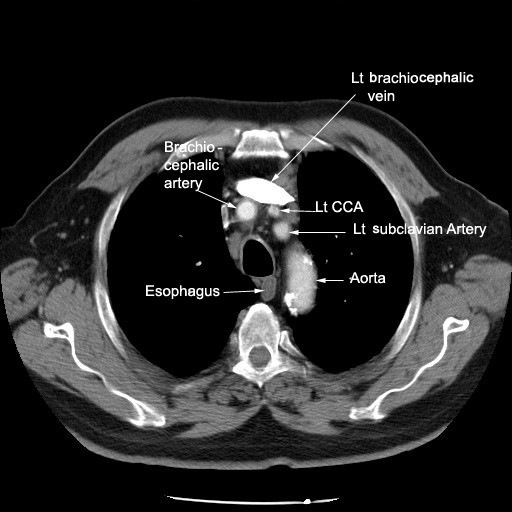

Image 4 | Identify vascular structures | Answer | |

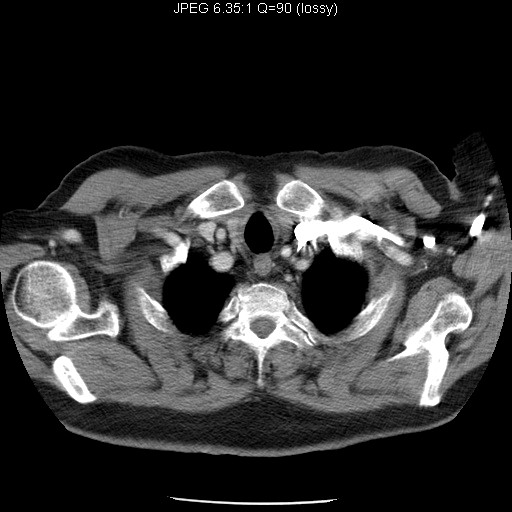

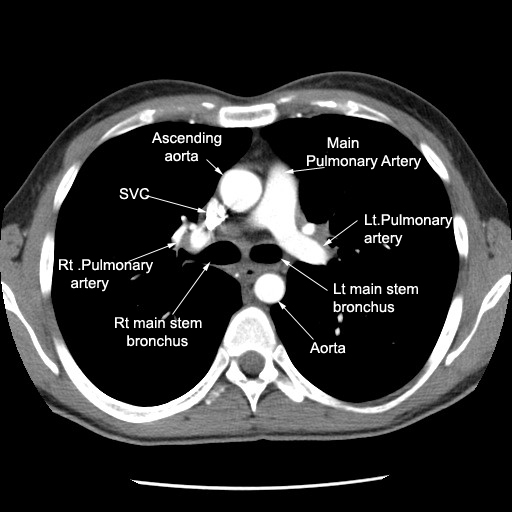

Image 5 | Identify vascular structures | Answer | |
Image 6 | Identify vascular structures | Answer | |
Image 7 | Identify vascular structures | Answer | |
Image 8 | Identify vascular structures | Answer | |

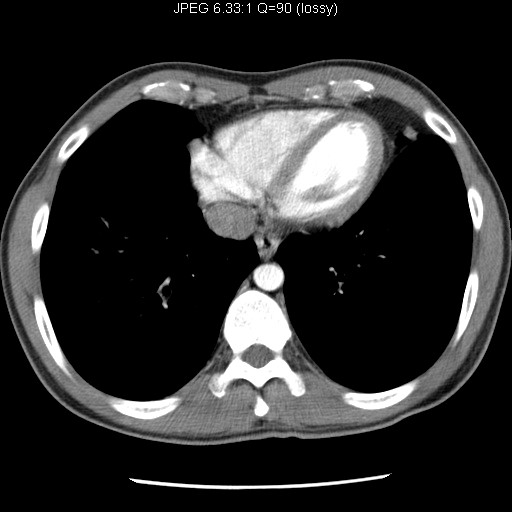

Image 9 | Identify vascular structures | Answer | |
Image 10 | Identify vascular structures | Answer | |
Image 11 | Identify vascular structures | Answer | |
Image 12 | Identify vascular structures | Answer | |
Image 13 | Identify vascular structures | Answer | |
Image 14 | Identify vascular structures | Answer | |
Image 15 | Identify vascular structures | Answer | |
Image 16 | Identify vascular structures | Answer | |

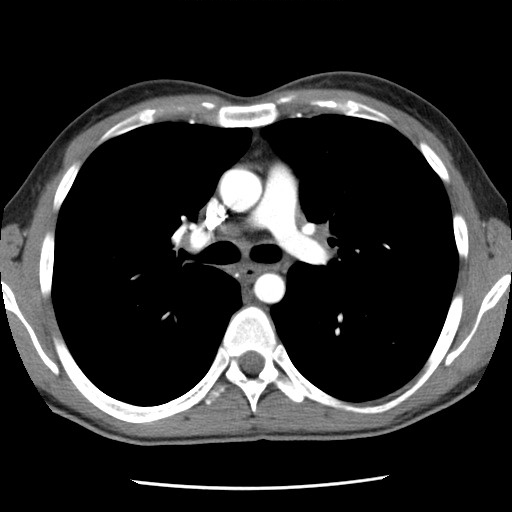

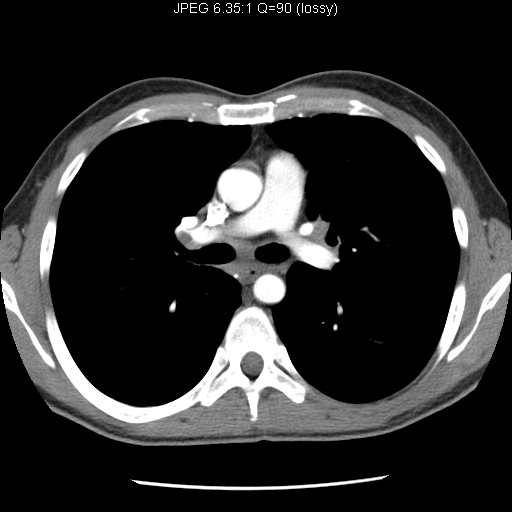

CT |
|||
Major veins
|
Sequence1
Sequence2 Sequence3
Sequence4 Sequence5
Sequence6 Sequence7
Follow the major veins draining into superior vena cava. |
||

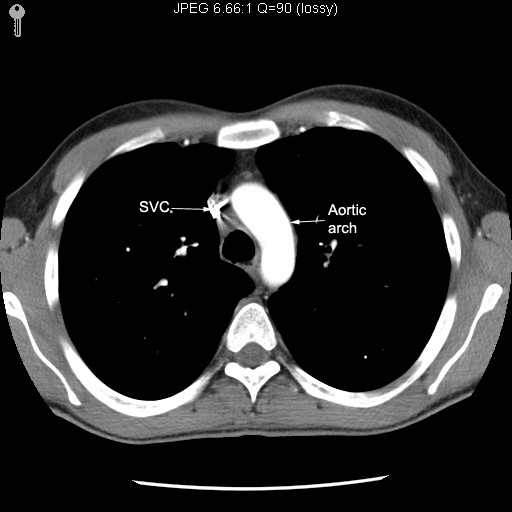

SVC | Right and left brachiocephalic veins join to form superior vena cava. Follow the superior vena cava entering right atrium | ||
Right atrium | Sequence
1 Sequence 2 Sequence
3 Sequence 4
Follow SVC entering right atrium. Note the relationship of right atrium to other chambers of heart. |
||

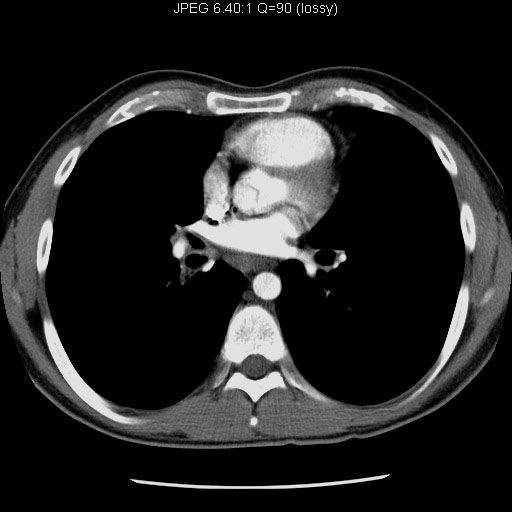

Right ventricle | Sequence 1 Sequence 2 Sequence 3 Sequence 4 Note the relationship of right ventricle to Sternum. |
||
Pulmonary artery |
Follow pulmonary artery. Identify right and left branches. |
||
Pulmonary veins | Sequence 1 Sequence 2 Sequence 3 Note Pulmonary veins entering left atrium. |
||

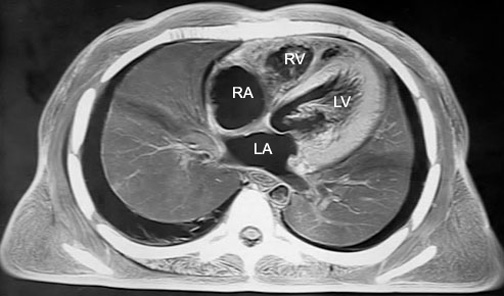

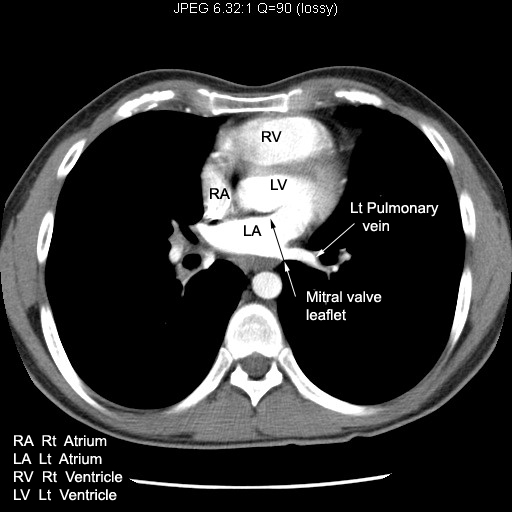

Left atrium | Sequence 1 Sequence 2 Sequence 3 Note mitral valve leaflet. Note its location.. |
||

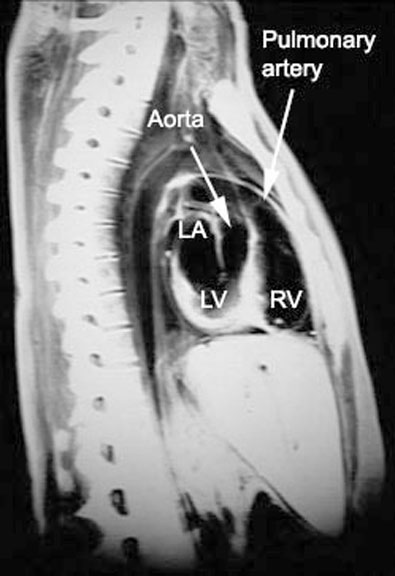

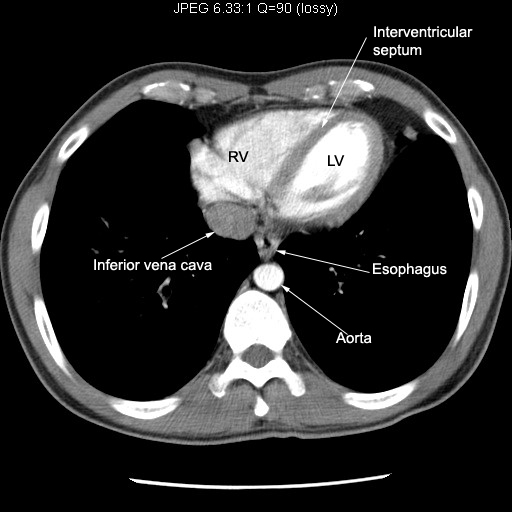

Left ventricle |
Note left ventricular wall thickness and Inter ventricular septum |
||

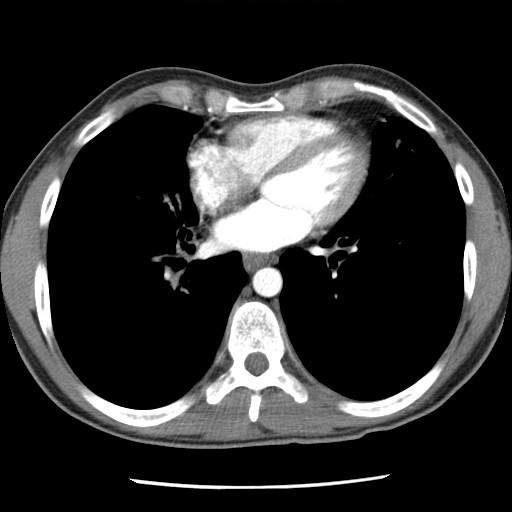

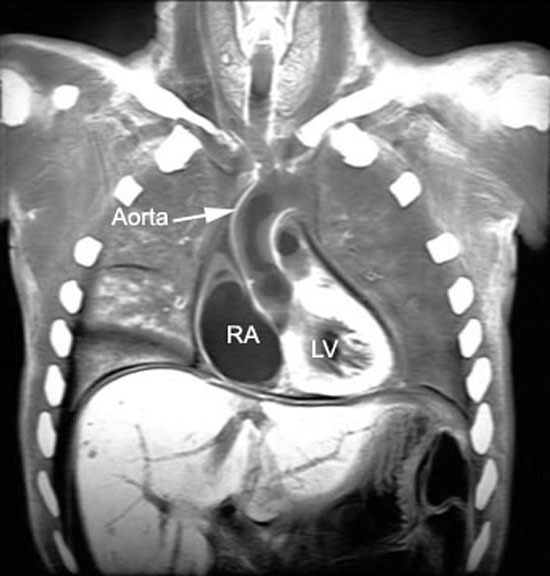

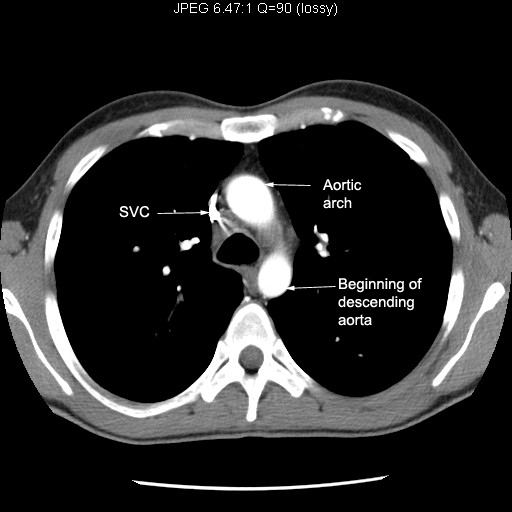

Aorta | Sequence 1 Sequence 2 Sequence 3 Sequence 4 Sequence 5 Sequence 6 Sequence 7 Sequence 8 Follow Aorta from head end to foot. Note major branches, ascending, arch and descending portions of Aorta. |
||
Major branches | Sequence
1 Sequence 2 Sequence
3 Sequence 4

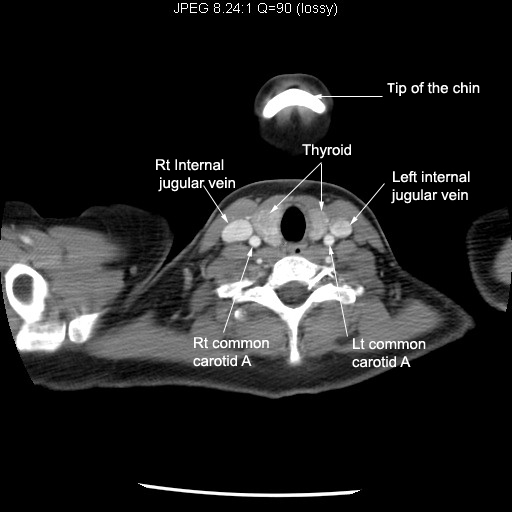

Follow the major branches of Aortic arch to neck. |
