UNDER CONSTRUCTION This has two modules
This exercise is for students studying Anatomy. Try answering the questions from the images. Click the image to see the labeled image. |
|
|
PA view |
|
| Drawing | Note the sternum and ribs |
| CXR 1 | Identify the anterior and posterior ribs |
| CXR 2 | How do you number the posterior ribs? |
| CXR 3 | How do you identify the first thoracic vertebra? |
| CXR 4 | Number the anterior ribs? |
| CXR 5 | Number the anterior ribs? |

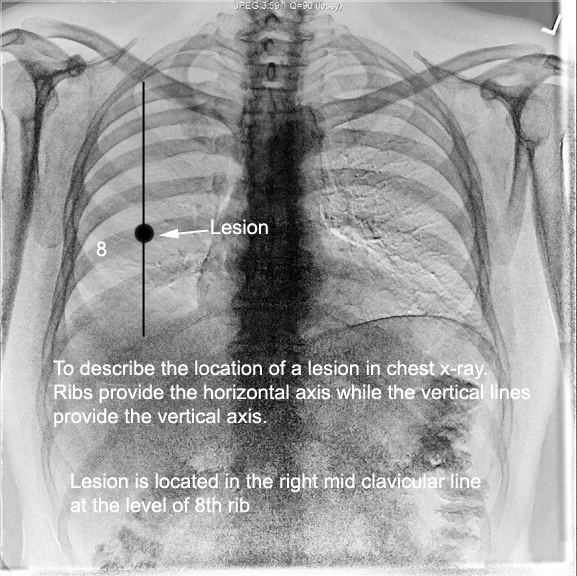

| What is the purpose of numbering ribs? Answer | |
| CXR 6 | Identify Vertebra, scapula, ribs, clavicle |
| CXR 7 | Draw the outline of Mediastinum. |
| CXR 8 | What are the Images at which you measure mediastinal width? |
| CXR 9 | Identify costo diaphragmatic (costo phrenic) angles. What does blunting of costo diaphragmatic angle imply? |
| CXR 10 | Identify diaphragm positions Which diaphragm is higher and why? |
| CXR 11 | Identify Trachea, carina, right and left main stem bronchi.Why are they visible, while rest of the bronchial tree is not? |
| CXR 12 | Identify right transverse fissure. What is the normal location? |
| CXR 13 | Identify left and right hilum.What is the normal relationship? |
|
Lobar Projections |
|
| CXR 1 | Visualize RUL projection in PA view |
| CXR 2 | Visualize RML projection in PA view |
| CXR 3 | Visualize RLL projection in PA view |
| CXR 4 | Visualize LLL projection in PA view |
| CXR 5 | Visualize LUL projection in PA view |
| CXR 6 | Visualize Lingula projection in PA view |
| CXR 7 | Visualize RUL projection in lateral view |
| CXR 8 | Visualize RLL projection in lateral view |
| CXR 9 | Visualize RML projection in lateral view |
| CXR 10 | Visualize LLL projection in lateral view |
|
Heart |
|
| CXR 1 | How do you measure heart size? What is the normal range for heart size? |
| CXR 2 | Identify chambers of heart in PA view |
| CXR 3 | Identify chambers of heart in PA view |
| CXR 4 | Identify ascending aorta, aortic knob and descending aorta |
| CXR 5 | Identify structures along the edge of mediastinum |
| CXR 6 | Identify structures along the edge of mediastinum |
| CXR 7 | Identify Aortic knob, AP window and Pulmonary artery. What can fill AP window? |
|
Lateral view |
|
| CXR 1 | Identify Sternum and angle. of Louis. What are the important landmarks at Sternal angle (Angle of Louis)? |
| CXR 2 | Identify Vertebra. |
| CXR 3 | Identify aortic, pulmonary arches and AP window |
| CXR 4 | Identify chambers of heart in lateral view |
| CXR 5 | Identify chambers of heart in lateral view |
| CXR 6 | Identify retrosternal air space. What is normal retrosternal space? |
| CXR7 | Identify costodiaphragmatic angle. How do we use this information? |
|
CT (Cross sectional anatomy : From Neck down towards Diaphragm) |
|
| CT 1 | Identify vascular structures: Neck |
| CT 2 | Identify Trachea and Esophagus: Entering Thorax |
| CT 3 | Identify vascular structures |
| CT 4 | Identify vascular structures: Superior Mediastinum |
| CT 5 | Identify vascular structures: |
| CT 6 | Identify vascular structures |
| CT 7 | Identify vascular structures |
| CT 8 | Identify vascular structures: Above Aortic Arch |
| CT 9 | Identify vascular structures: Just above Aortic Arch |
| CT 10 | Identify vascular structures: Aortic Arch |
| CT 11 | Identify vascular structures |
| CT 12 | Identify vascular structures: Level of Carina |
| CT 13 | Identify vascular structures: Below Carina |
| CT 14 | Identify vascular structures |
| CT 15 | Identify vascular structures |
| CT 16 | Identify vascular structures: Just above Diaphragm |
| CT Cross sectional Anatomy of Airways | |
| Model | Identify various portions of the bronchial tree |

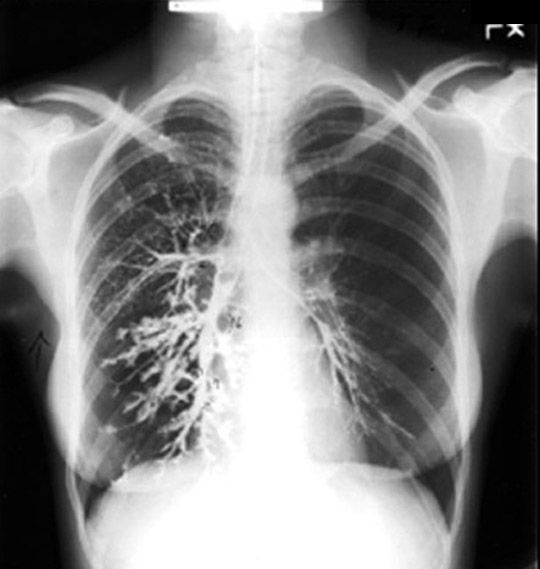

| Bronchogram | A past procedure to visualize bronchial tree |
| Left Main | Identify the various divisions of left main bronchus. |

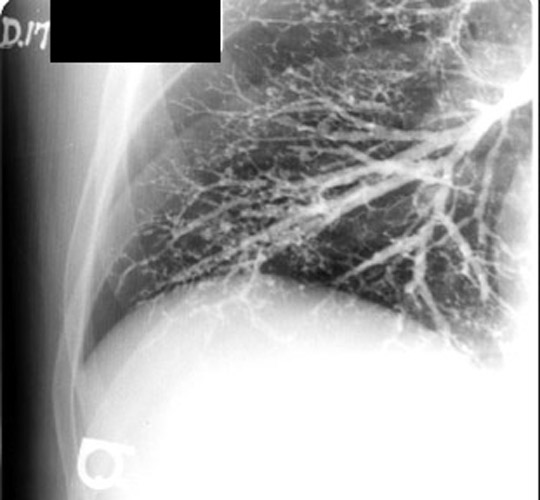

| RLL | Appreciate the branching of bronchi |
| CT | Identify the bronchus. Just above Carina |
| CT | Identify the bronchi. Level of Carina |
| CT | Identify the bronchi. Level of Carina |
| CT | Identify the bronchi. Below Carina |

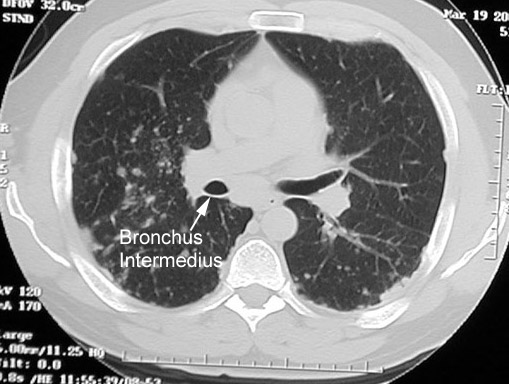

| CT | Recognize Bronchus Intermedius |
| CT | Identify the bronchi. Below left main pulmonary artery |
| CT | Identify the bronchi. Level of Left atrium |
| CT | Identify the bronchi. Lower thorax |
| CT | Identify the bronchi. Lower thorax |
